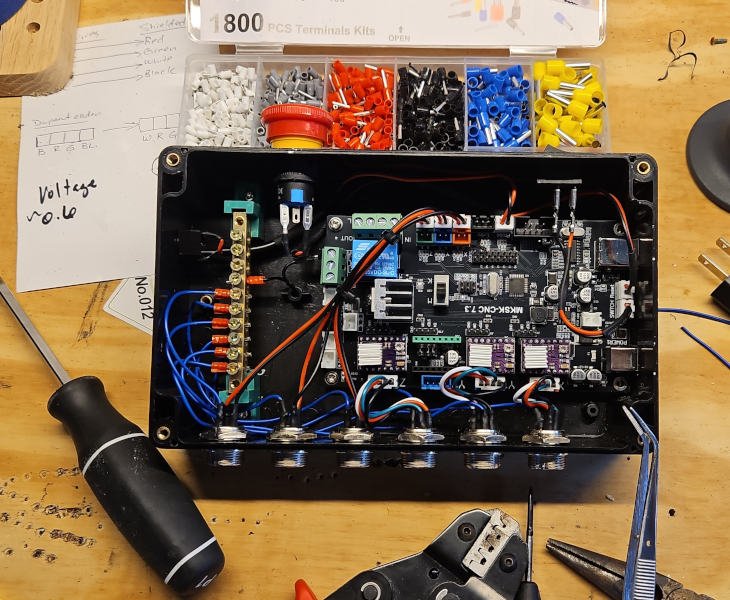

CNC Electronics Rebuild

When I first bought my CNC machine, I was never a fan of the manufacturer's installation instructions for the electronics. This project became a necessary unscripted upgrade to replace the components, resolve years of inconsistent performance, and ensure the long-term reliability of the machine.

Project Overview

The primary goal was to resolve several consistency and reliability issues that have plagued me since I purchased my CNC machine in 2020. I had many theories about the cause over the years, but they all turned out to be wrong. The true source of all the issues turned out to be bad electrical connections throughout the entire system. This rebuild project has successfully eliminated all of those problems.

Key Features & Details

This enclosure and system were designed to address every practical need of managing the CNC electronics in a dusty shop environment. I spent several weeks planning the upgrades and selecting components to get the most reliable system possible.

• Dust-Proof Enclosure: Minimize dust and other shop hazards was critical.
• Maximized Airflow: A fan and exhaust port were added to keep the system cool.
• Wiring Upgrade: Shielded cables were installed to prevent Electromagnetic Interference (EMI).
• Cable Management: All cables were consolidated in braided mesh per axis for organization.
• Emergency Stop: An emergency stop was critical for shop safety.
• Calibration: The controller software was optimized to achieve ±0.07mm accuracy.

Solving the Contradiction

Achieving a balance between a sealed enclosure, effective cooling, and reliable operation required meticulous planning and component selection.

• Controller: Replacing the problematic Arduino controller with a more reliable solution.
• Cooling: Finding the optimal placement for the fan and exhaust ports was critical for cooling.
• Dust Prevention: Design choices focused on eliminating as much dust in the system as possible.
